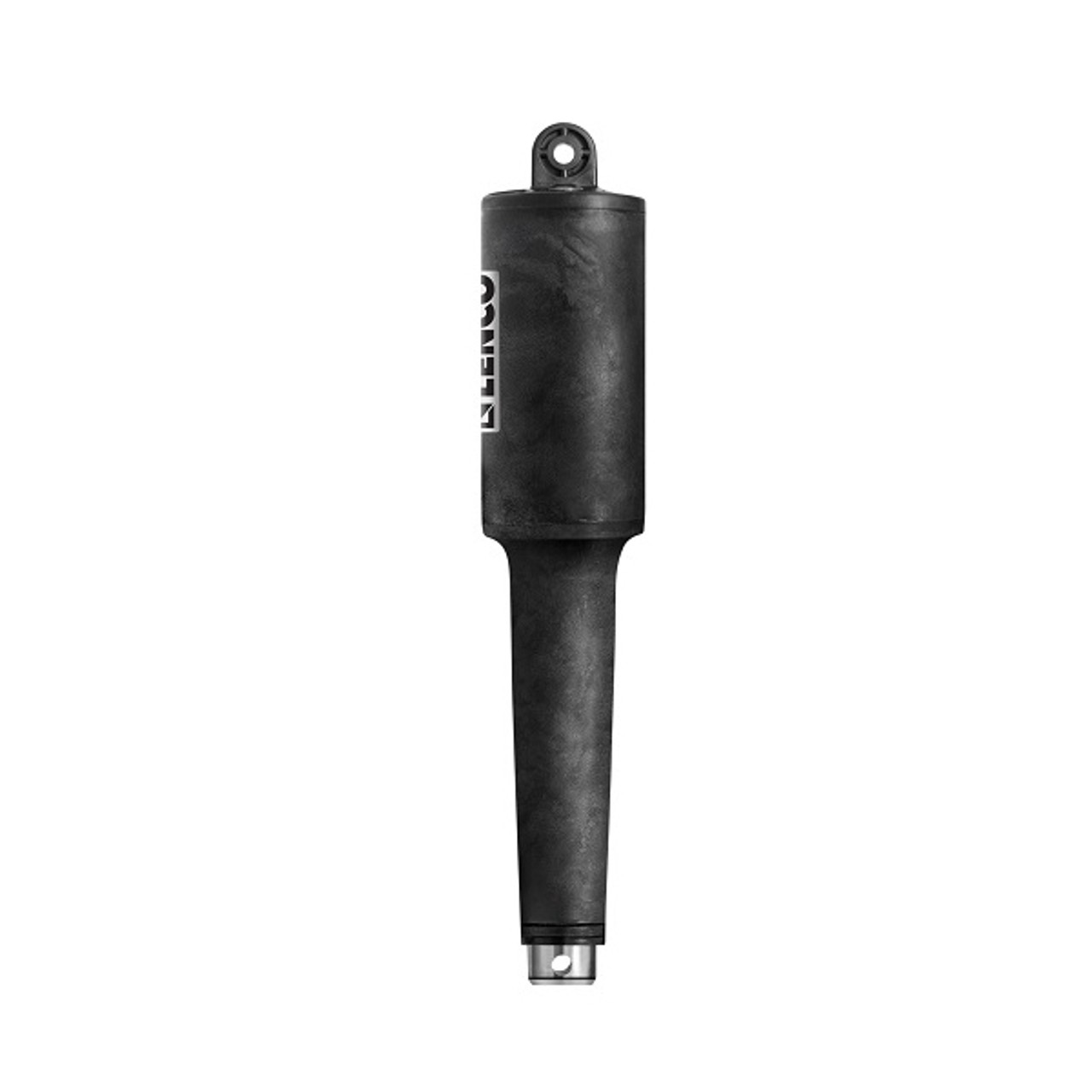

Add to CartThis replacement 4-1/4" Stroke trim tab Actuator for trolling tab systems sold prior to 2000 and other 20403-001 OEM applications. The ballscrew design is twice as powerful compared to typical hydraulics and more reliable. This high-torque trim tab actuator easily pushes 550 lbs. Easy to use, this plug and play actuator uses waterproof Deutsch connectors to eliminate any possible water intrusion. This Lenco actuator comes with a 6' cable for easy installation.
Product Specifications:
The Lenco 15059-001 may be the correct replacement if your existing trim tab system uses a 12V 102S actuator with a 4.25-inch stroke, 5/16-inch top-cap hole, and 5/16-inch end hole. It replaces Lenco OEM part number 20403-001 and is intended for trolling tab systems sold prior to 2000 and other compatible 20403-001 OEM applications. Confirm the existing actuator type, voltage, stroke length, mounting-hole configuration, and part number before ordering.
The Lenco 15059-001 102S actuator replaces OEM part number 20403-001.
This Lenco 102S replacement actuator has a 4.25-inch stroke. The product has an overall length of 13.375 inches and an overall width of 2.5 inches.
The Lenco 15059-001 uses a 5/16-inch top-cap mounting hole and a 5/16-inch end mounting hole. Both mounting points should match the existing actuator installation.
The Lenco 15059-001 is a 12V trim tab actuator. It should be used only with a compatible 12V Lenco trim tab system.
This replacement actuator includes a six-foot cable for installation.
Yes. The actuator uses waterproof Deutsch connectors designed to help prevent water intrusion and provide plug-and-play installation.
The high-torque Lenco 15059-001 actuator is designed to push up to 550 pounds.
Locate the five-digit branding code on the face of the actuator near the Lenco label. Use the second digit to identify the actuator type and the fifth digit to identify the mounting-hole configuration. Compare the code, voltage, stroke length, mounting-hole sizes, and OEM part number before selecting a replacement. See our Lenco trim tab actuator identification guide for step-by-step help.
Not all Lenco 102S actuators are interchangeable. Replacement models may differ in voltage, stroke length, mounting-hole sizes, cable configuration, and OEM part number. Verify all specifications rather than choosing an actuator based only on appearance.
A single actuator may be replaced when the new actuator matches the existing trim tab system and the actuator on the opposite side is still operating correctly. Inspect both actuators, the trim tabs, wiring, controls, connectors, and mounting hardware before completing the repair.
