Patriot Docks Premium "T" Floating Dock w/ Gray Aluminum

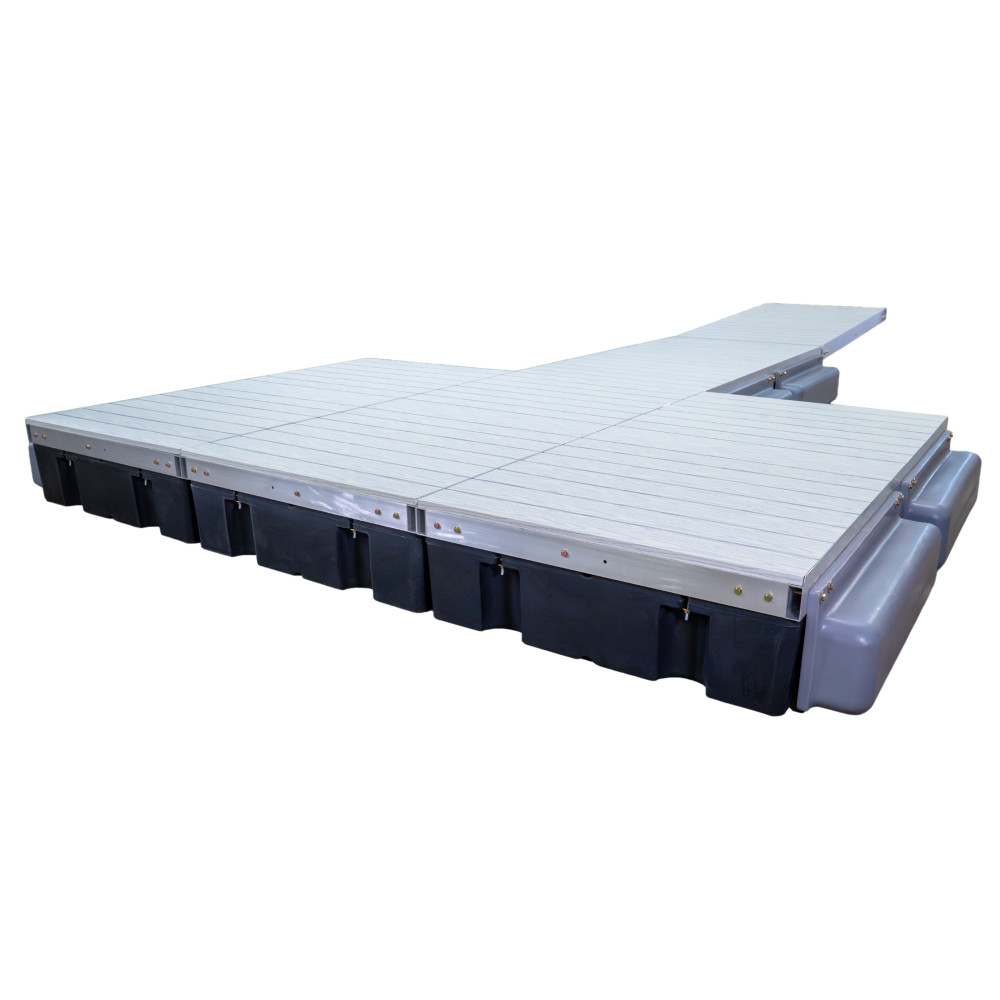

Patriot Docks Premium Low-Profile T-Shaped Floating Dock with Gray Aluminum Decking

The Patriot Docks Premium T-Shaped Floating Dock provides increased buoyancy, stability, and usable dock space for residential and recreational waterfront applications. Available in 24 ft., 32 ft., and 40 ft. configurations, this modular floating dock system is designed for lakes, reservoirs, rivers, and other waterfronts with fluctuating water levels or deeper water.

Constructed from marine-grade 6061-T6 aluminum, the low-profile frame provides lightweight strength, corrosion resistance, and easier seasonal handling. The T-shaped layout adds usable surface area and improves side-to-side stability, making the dock suitable for swimming, fishing, relaxing, launching kayaks and paddlecraft, and docking watercraft.

Foam-filled dock floats provide dependable flotation and leak protection. Hinged frame connections allow the dock to naturally articulate as water conditions change, helping reduce stress on the dock structure. The modular dock sections also allow for future expansion and layout customization.

The drop-in gray aluminum decking provides a durable, low-maintenance walking surface with a powder-coated wood-grain finish. The decking panels can be removed for seasonal service or future upgrades.

24' Floating Dock Kit Includes:

• (5) 4' x 8' low-profile floating dock frames with hardware
• (8) 48" x 24" x 12" foam-filled rectangular floats with plugs
• (8) J-bolt float mounting hardware sets
• (8) 43" x 13" x 7" side stability floats with hardware
• (2) floating hinge kits with hardware
• (4) 3" steel piling sleeves with hardware; accepts up to 2" O.D. pipe
• (10) 4' x 4' gray aluminum deck panels
• Assembly instructions

32' Floating Dock Kit Includes:

• (6) 4' x 8' low-profile floating dock frames with hardware
• (10) 48" x 24" x 12" foam-filled rectangular floats with plugs
• (10) J-bolt float mounting hardware sets
• (12) 43" x 13" x 7" side stability floats with hardware
• (2) floating hinge kits with hardware
• (4) 3" steel piling sleeves with hardware; accepts up to 2" O.D. pipe
• (12) 4' x 4' gray aluminum deck panels
• Assembly instructions

40' Floating Dock Kit Includes:

• (7) 4' x 8' low-profile floating dock frames with hardware
• (12) 48" x 24" x 12" foam-filled rectangular floats with plugs
• (12) J-bolt float mounting hardware sets
• (16) 43" x 13" x 7" side stability floats with hardware
• (3) floating hinge kits with hardware
• (4) 3" steel piling sleeves with hardware; accepts up to 2" O.D. pipe
• (14) 4' x 4' gray aluminum deck panels
• Assembly instructions

Vertical piling pipe is not included. The customer is responsible for determining the appropriate anchoring method for their waterfront location and installation.
