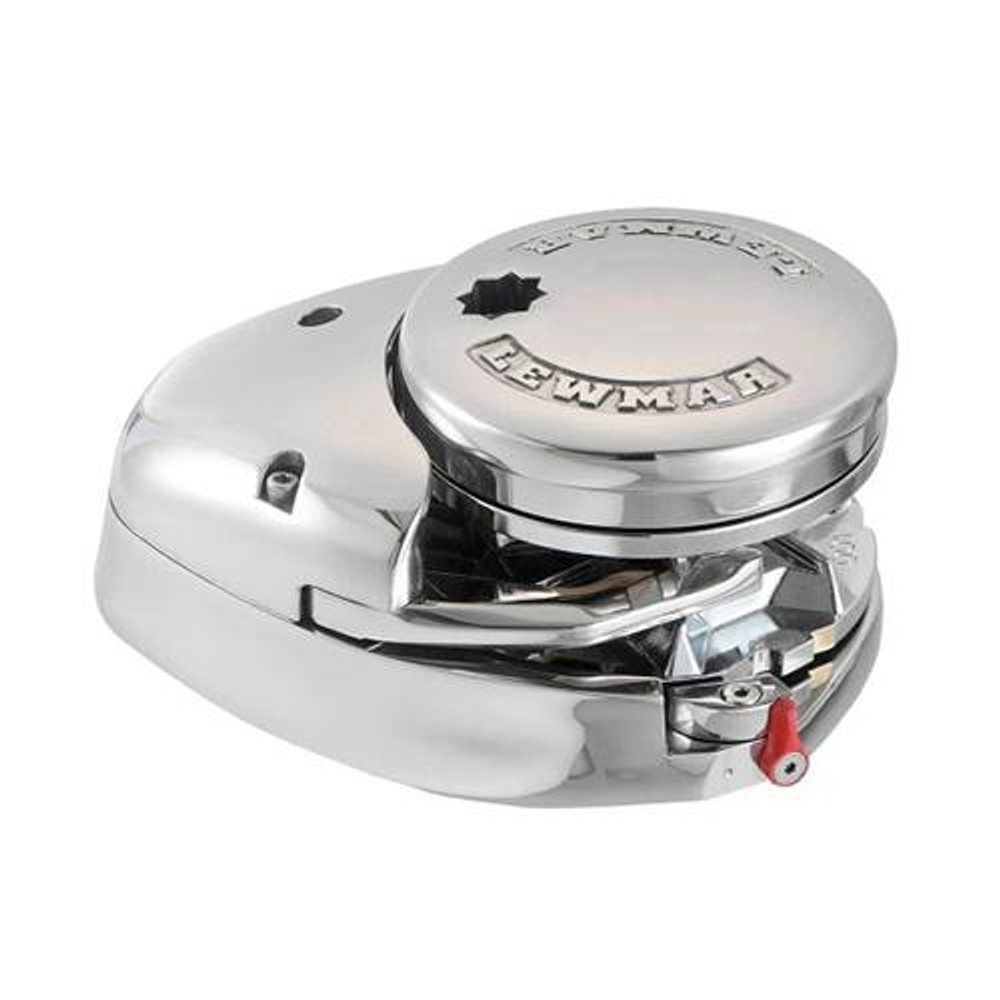

Lewmar V1 Vertical Windlass

Lewmar V1 Vertical Windlass

Shop All Lewmar Marine

SKU:
LEW-6671011108-138
Lewmar V1 Vertical Windlass
$3,253.49
$1,813.99

Low Price Guaranteed

Availability:
In Stock - Ships Today
Order within :

Free Shipping over $99 Learn More

Frequently Bought Together
  • Lewmar V1 Vertical Windlass

  • Total Price:

    Add to Cart

Lewmar V1 Vertical Windlass

Features:

  • 1/4" Chain & 1/2" 3 Strand Rope
  • Manual Chain Release Free-Fall
  • Cone clutch for smooth, easy control
  • W.A.R.P Drum
  • Fall safe anchor lock
  • Robust/reliable worm gearbox
  • Optional manual override motor gearbox
  • 12 Volt
  • For Boats up to 40ft

pdficon.pngClick here to download Lewmar V1 Vertical Windlass Owner's Manual

California Residents: warning sign WARNING Cancer and Reproductive Harm - P65Warnings.ca.gov

Specification

Lewmar V1 Vertical Windlass

Material
Stainless Steel
Product MPN
6671011108-138
Product UPC
743683327360
Fast Ship
In Stock Ships Today
Motor Type
Vertical windlass (gypsy)
Pulling Power
Approx. 700 lb max pull
Working Load
Approx. 175 lb working load
Max Load
700 lb
Retrieval Speed (ft/min)
79 ft/min
Voltage
12V DC
Amperage Draw
Approx. 35 A
Gypsy Size
1/4" chain gypsy
Chain Compatibility
1/4" G4 HT or BBB chain; 7 mm DIN 766
Rope Compatibility
1/2" (12 mm) 3-strand or 8-plait nylon rode
Material
316 stainless steel deck unit with vertical gypsy
Recommended Boat Length
Boats approx. 26–35 ft
Circuit breaker size
35 A
Warranty Length
5-year limited warranty
Manual Override included
Yes – manual recovery provision
Contrtol Options
Helm rocker switch; optional foot switches/remote
